Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket

Wuxi Fergus Intelligent Technology Co., Ltd.
Contact Now

Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket

Brand Name : OEM

Model Number : electric linear actuator

Certification : CE

Place of Origin : CHINA

MOQ : 10pcs linear actuator

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs linear actuator per month

Delivery Time : 10-12 work days

Packaging Details : carton box

Price : Negotiable

VOLTAGE : 12VDC

Item name : Electric linear actuator

STROKES : 100mm (4'')

LOAD : 1200N

SPEED : 5MM/S

Feature : Zinc Die Cast Housing

Limit Switches : internal, factory preset

Material : Aluminum outer tube

Options : Stainless steel translating tube

Contact Now

4'' stroke 110 pound linear drives electric 12volt dc, remote controller linear actuator with mounting bracket

Specification of Electric Linear Actuator:

Linear actuator trapezoid screw rod
Power supply 24VDC /12VDC
Rated Load 1200N
Stroke length Optional range 50mm~600mm
Standard speed 5mm/s~60mm/s
Maximum installation L=Stroke S+105mm (50-299mm)
L=Stroke S+140mm (300-499mm)
L=Stroke S+170mm (500-600mm)
Environmental temperature -35℃~65℃
Using frequency 25%
Protection level IP65


Features & Benefits of electric linear actuator

  • Limit Switches - internal, factory preset
  • Zinc Die Cast Housing for strength
  • Aluminum outer tube for corrosion resistance
  • Keyed translating tube to prevent rotation
  • Polished aluminum translating tube for smooth operation
  • Warranty - 1 year, parts and labor

Options of linear actuator
■ Potentiometer,
■ Signal sending limit switch
■ Stainless steel translating tube
■ Custom cable lengths
■ Wired or wireless handsets
■ DC power supply for multiple actuators
■ Stepper motor
■ Custom design models

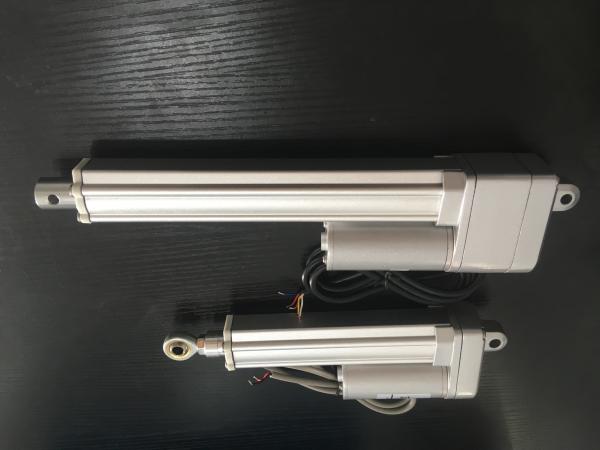

Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket



Outline drawing of Electric Linear Actuator

Electric Linear Actuator Without Pot

Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket
Electric Linear Actuator With Pot
Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket


How do I select linear actuators?

There are many factors to consider when selecting a linear actuator for an application need.
Some of these important parameters are mentioned below:

  • Stroke length (travel length)
  • Installation length
  • Mounting requirements
  • Feedback
  • Motor voltage
  • Dynamic load
  • Static load
  • Speed

Pound Linear Drives Remote Controller Electric Linear Rod Actuator With Mounting Bracket


Some examples of applications where LINEAR ACTUATOR / ELECTRIC CYLINDER are in use:

  • Locking mechanisms for vehicle-mounted wheelchair lifts
  • Moving device for Patient lifter
  • Driving the movement in robotic hands
  • Used for testing touch screens on mobile devices
  • Titling the boom/brush of Vehicles
  • Car window opener
  • Open/Close the valve
  • hoist-style lift for scooters and powerchairs

We will help you choose the best actuator for your application.
From your first prototype right through to full-scale production of your product, we will be there to support you.
